UAD-ZB07 portable full frequency detection equipment

Advantages：70MHz to 6000MHz full-band detection/built-in large-capacity battery

Description：UAD-ZB07 portable full-frequency detection device is a high-performance drone detection tool designed for drone detection and early warning. It can be freely matched with drone countermeasure equipment or decoy equipment to form a complete defense system.

hands-on guidance

lowest cost

One-on-one after-sales service

Introduction Advantages Specifications

Introduction

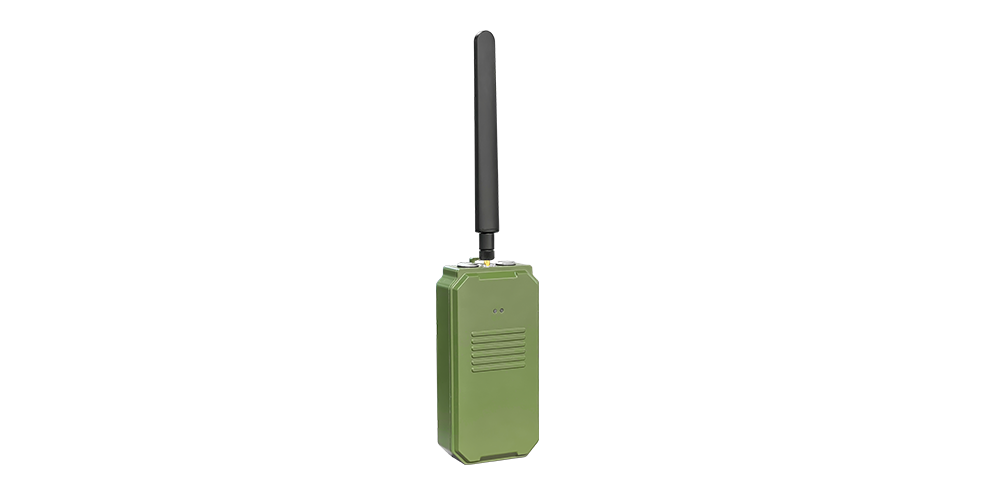

The UAD-ZB07 portable full-frequency detection device is a high-performance drone detection tool. Its lightweight and portable design can cover a wide frequency band from 70MHz to 6000MHz. It supports drones of multiple brands and models including the full range of DJI and Changtianyou, as well as other drones using the same or compatible protocols, covering more than 95% of common civilian drone models. It is suitable for mobile duty of police officers and vehicles, and can detect surrounding drones in the first place, effectively making up for the problem of untimely detection of drones at work.。

Free plan customization Help you save 60% of the budget

consultation

Product Features

「 Offering globally leading low-altitude safety and control solutions 」

Wide coverageThe operating frequency range is from 70MHz to 6000MHz, covering all common drone communication frequency bands on the market.
Alarm modeSupports sound, light and vibration alarm methods to ensure that users can receive timely notifications even in noisy or poor visibility.
DurableBuilt-in large-capacity battery provides up to 8 hours of continuous working time, ensuring long-term operation without frequent charging.
Detection advantagesThe maximum detection radius is 1.5 kilometers, which is suitable for a variety of scenarios. The optimized signal analysis algorithm ensures that the false alarm rate is less than 1%.
Lightweight and portableSmall size, weighing only 800 grams, compact size, easy to carry, suitable for rapid deployment in outdoor or mobile scenes.
Convenient chargingAdopts magnetic charging interface, compatible with DC5V1A and above charging input, supports fast charging with portable power supplies such as power banks.

Serving The World

For more than 10 years, we have accumulated rich experience, with customers in over 160 countries and regions. As a professional developer of C-UAS, Shenzhou Mingda has been rated as a "smart security China's good brand", and its products have gained the trust and favor of customers.

Tailor-made solutions On-site guidance for installation

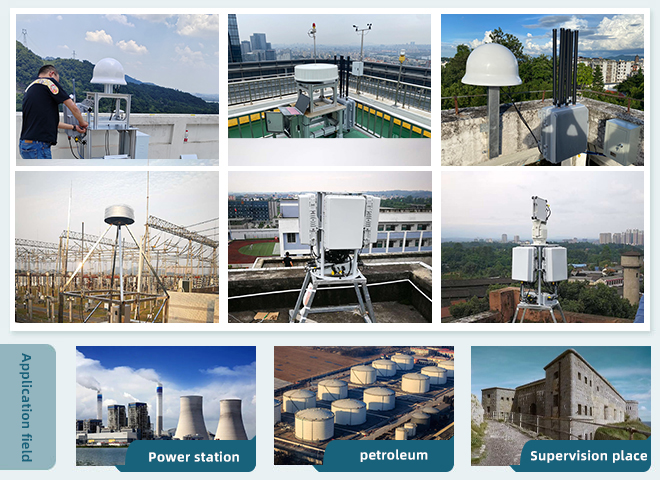

The system adopts a portable full-band design and can be used for low-altitude protection in power plants, petroleum and petrochemicals, aviation airports, public security and justice, supervision sites, event sites and other fields.
