SZMD-SR225 UAV surveillance radar

Advantages：Five-sided array all-round 360-degree detection, the maximum detection distance ≥ 3.0km.

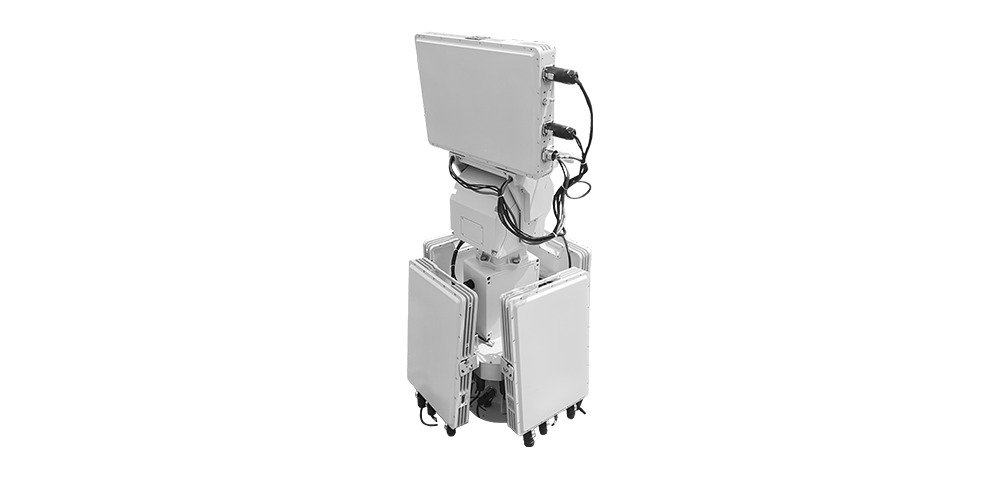

Description：Security surveillance radar is mainly composed of 4 direction-finding radar front, 1 altimeter radar front, turntable and distribution control box, etc., which can accurately give the target's orientation, distance, height and speed track information. De

hands-on guidance

lowest cost

One-on-one after-sales service

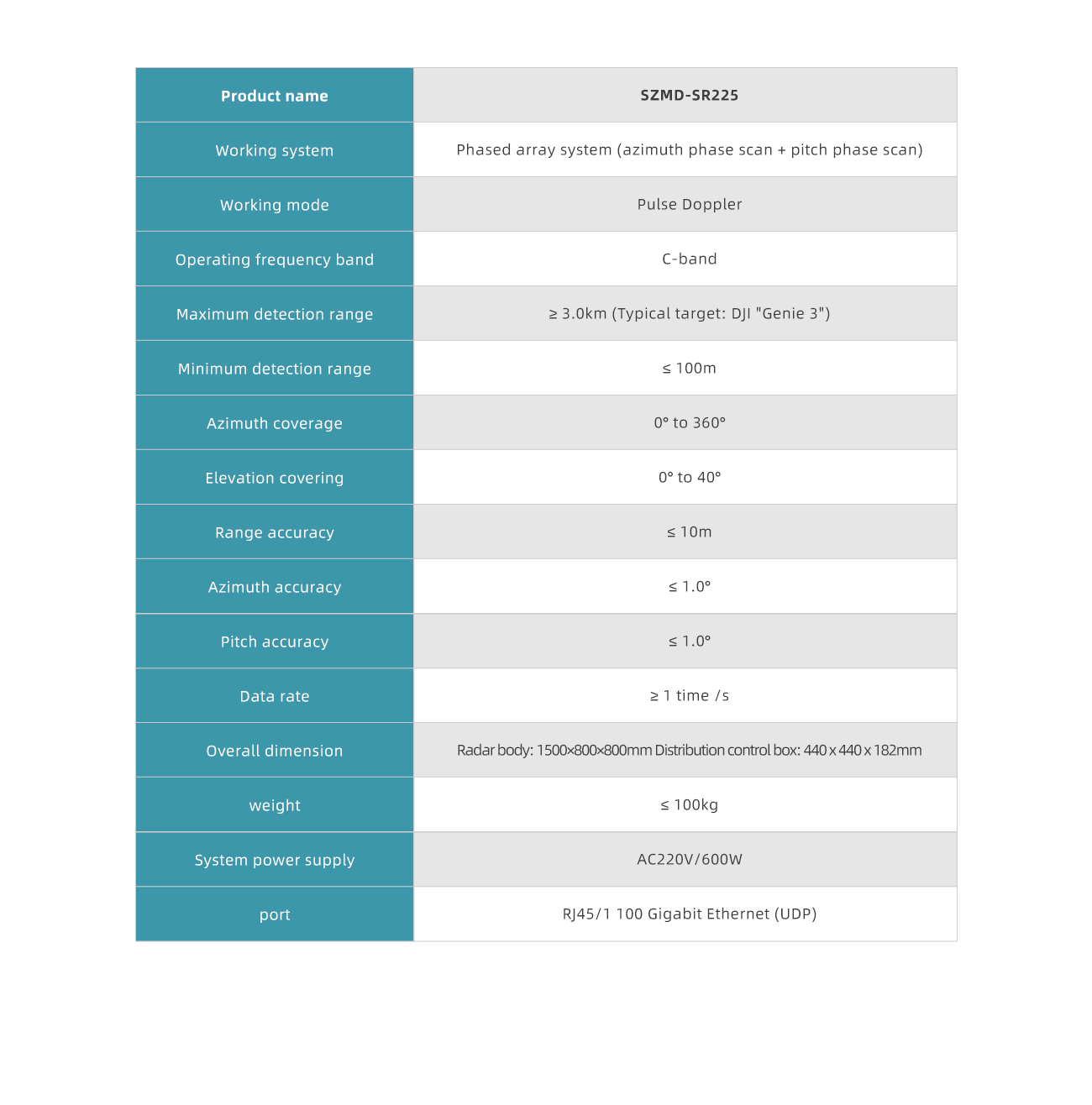

Introduction Advantages Specifications

Introduction

The security surveillance radar is mainly composed of 4 direction-finding radar fronts, 1 altimeter radar front, turntable and distribution control box, etc. The radar adopts C-band, phased array + azimuth phase sweep + pitch phase sweep technology system. It can accurately give the target's orientation, distance, altitude, speed and other track information.。

Free plan customization Help you save 60% of the budget

consultation

Product Features

「 Offering globally leading low-altitude safety and control solutions 」

Advanced technology systemUsing the one dimensional phase scanning mode of phased array system, the azimuth electrical scanning can realize fast scanning without inertia and support non-uniform detection.
Target rangeIt can detect all Ufos, including but not limited to regular UAVs, informal UAVs, automatic cruise (silent flight), model aircraft, self-assembled UAVs, frequency changing UAVs, etc.
High monitoring accuracyFor long-distance detection targets, it can keep high precision tracking, accurately give the target's orientation, distance, altitude and speed and other track information.
Monitoring distanceFor the effective detection distance of drones up to 3.0km, the use of very advanced sensors, with extremely high sensitivity, distance advantages.
Strong environmental adaptability7*24 hours can work in bad weather, all-weather operation, can set the defense plan as planned, and one key intelligent start the defense work.

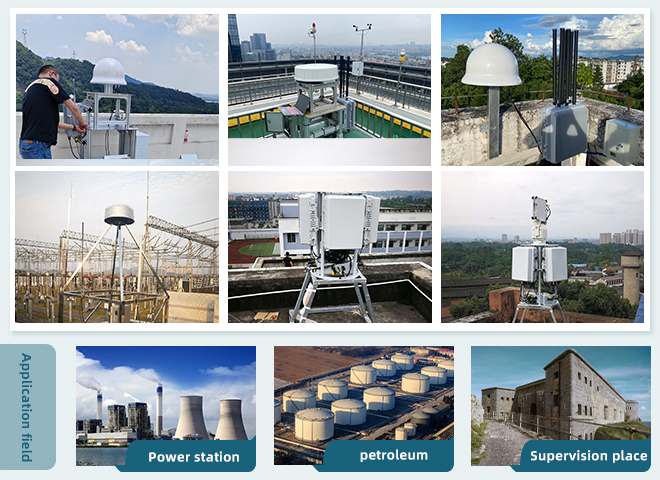

Wide range of applicationIt is used for detection, warning and target indication of drones and aircraft flying at low altitude in key areas such as borders, airports and military bases.

Serving The World

For more than 10 years, we have accumulated rich experience, with customers in over 160 countries and regions. As a professional developer of C-UAS, Shenzhou Mingda has been rated as a "smart security China's good brand", and its products have gained the trust and favor of customers.

Tailor-made solutions On-site guidance for installation

We are committed to the overall planning from the initial project consulting and products, to the programme design, selection and configuration, and then to the construction of the project, according to the different needs of each customer's project, tailored to the competitive integration of intelligent solutions, to help customers get a better protection effect.
